CASTING MATERIALS

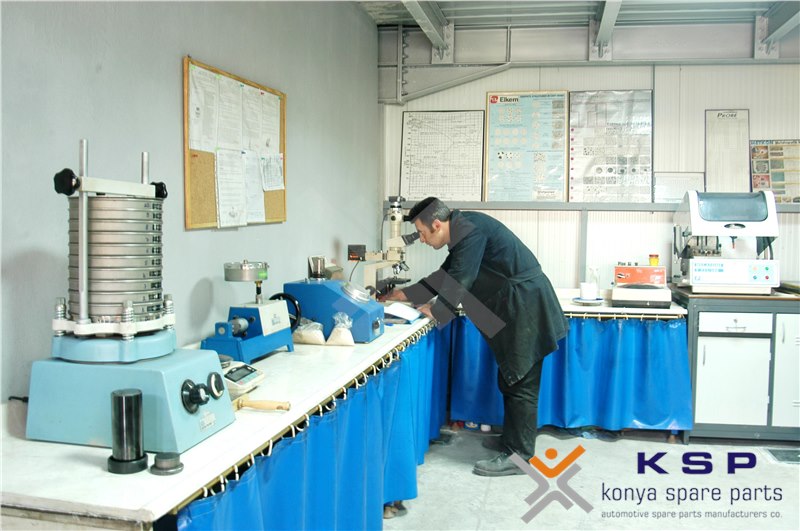

We are checking our materilal before casting and after casting with quick lab and spectrometer test devices.

· GREY CAST IRON

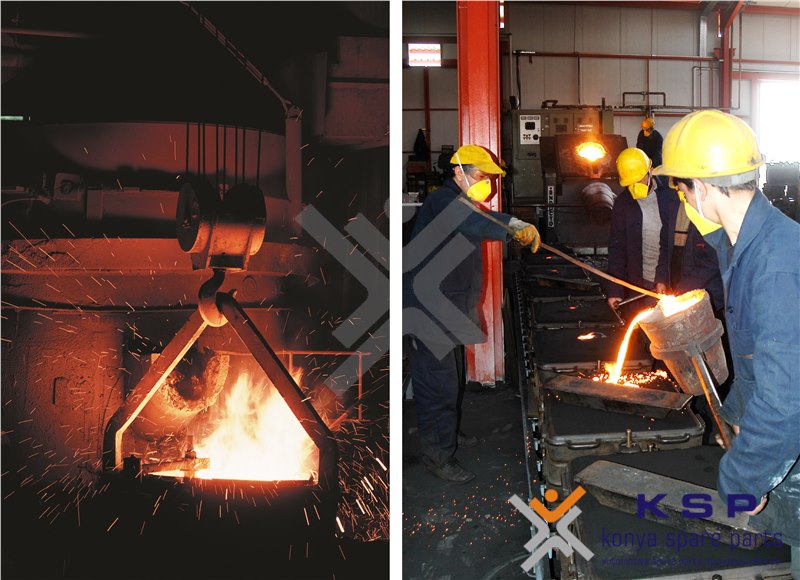

We are available to supply you grey cast iron part from 2 kg. to 12.000 kg. with medium frequency melting furnaces.

EQUIVALENT STANDARDS
DIN EN 1561	Germany	France	England	Netherlands	Sweden	USA
DIN EN 1561	DIN 1691	NF	BS	NEN	MNC	ASTM A4876
EN-GJL-150	GG-15	Ft 15 D	Grade 150	GG 15	01 15-00	20 B / 25 B
EN-GJL-200	GG-20	Ft 20 d	Grade 180 /Grade 220	GG 20	01 20-00	25 B / 30 B
EN-GJL-250	GG-25	Ft 25 D	Grade 220 /Grade 260	GG 25	01 25-00	35 B / 40 B

GJL-300

GG-30

Ft 30 D

Grade 260 /Grade 300

GG 30

01 30-00

45 B / 50 B

· DUCTILE IRON
We are available to supply you ductile cast iron part from 2 kg. to 7.000 kg. with medium frequency melting furnaces.

EQUIVALENT STANDARDS
EN 1563	Germany	France	England	Netherlands	Sweden	USA
EN 1563	DIN 1693	NF	BS	NEN	MNC	ASTM A536
EN-GJS-400-18-LT	GGG-40.3	-	-	-	-	60-40-18
EN-GJS-400-15	GGG-40	FGS 400-12	420/12	GN 42	0717-02	60-40-18
EN-GJS-450-10	-	-	420/12	-	-	65-45-12
EN-GJS-500-7	GGG-50	FGS 500-7	500/7	GN 50	0727-02	65-45-12/80-55-06
EN-GJS-600-3	GGG-60	FGS 600-3	600/3	GN 60	0732-03	80-55-06
EN-GJS-700-2	GGG-70	FGS 700-2	700/2	GN 70	0737-01	100-70-03
EN-GJS-800-2	GGG-80	FGS 800-2	800/2	-	-	120-90-02

· CAST STEEL
Unalloyed, alloy and high-alloy steel with a chemical composition according to national and international standards as well as to customers wishes.
Carbon steel casting, Heat-resistant steel casting; stainless steel casting; Wear-resistant steel castings; Tempered steel castings; Steel castings for welded structures

· MALLEABLE CAST IRON

EQUIVALENT STANDARDS
DIN EN 1562	Germany	France	England	Netherlands	Sweden	USA
DIN EN 1562	DIN 1692	NF A32-702	BS	NEN	MNC	ASTM / SAE
EN-GJMB-35-10 (GTS-35-10)	EN-GJMB-35-10 (GTS-35-10)	EN-GJMB-35-10 (MN-350-10)	EN-GJMB-35-10 (B 35-12)	-	SIS 08 15-00	Grade 22010Grade 32510
